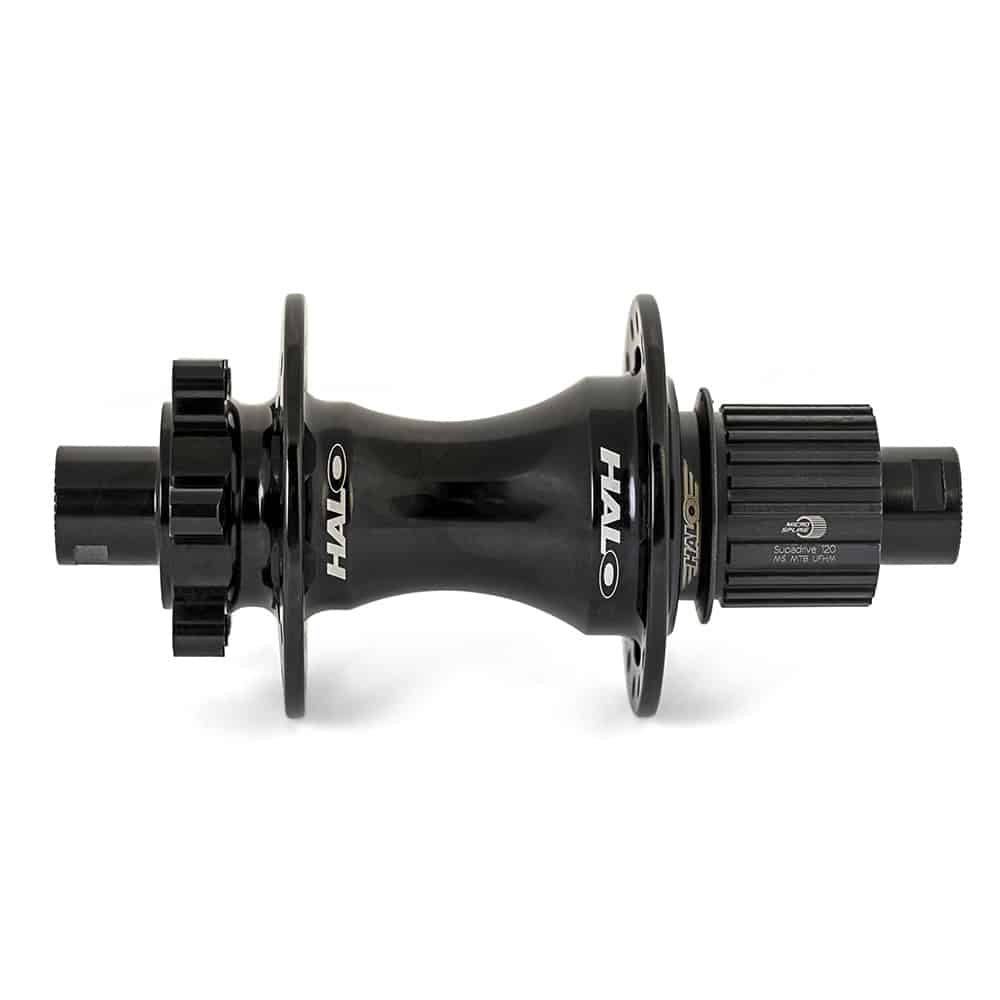

MT Supadrive Hub

Standard spacing Supadrive MTB hub

£100.00£190.00 (inc VAT)

Clear

SKU: HUHASVH2K/P Categories: ,

Price excludes duties and taxes.
You may be liable to pay these additionally when your goods arrive in your country. Learn more.

Description

Our MT series hubs are our flagship mountain bike hub range. The MT series encompass everything we feel hubs for mountain biking should offer.

Durability, modularity and light weights make the MT Series a simple choice.

Suited best to XC, trail and enduro bikes alike, the MT Supadrive hub offers a 120 point near instant engagement with the ability to withstand substantial torque loads, such as those found with wide range cassettes. With multiple World Championship titles across a range of disciplines the Supadrive system is tried and tested to the very highest level and is our most advanced and reliable drive system to date.

Wide spoke flanges, sealed cartridge bearings and a Cr-Mo tube axle in the MT Supadrive hub ensure longevity.

Designed to be run with mountain bike gearing, the MT Supadrive hub features an XD driver or alternatively a MTB width HG freehub. Please refer to the GXC Supadrive for a 11 speed road cassette compatibility.



An additional Boost adaptor kit is also available, to retrofit this hub into Boost compatible frames.

Specifications

Material

6061 Alloy forged hub shell

Drillings

32H or 36H

Bearings

2 x 6902 (hub) 3 x 6802 (SRAM Freehub) or 1 x 6902 and 6802 (HG Freehub)

Axle

Cro Mo with 135mm QR/12x142mm thru ends included

Disc Mount

IS 6-Bolt

Ratchet

120 teeth triple-wedge pawl mechanism

Freehub Body

Shimano HG or Sram XD

Spoke Hole Circle Diameter (PCD)

58mm

Centre to Flange

Left: 34mm, Right: 20mm

OLD

135/142mm

Model Ref

S-DRV-FG

Colour

Black, White, Red or Silver.

Weight

296g
