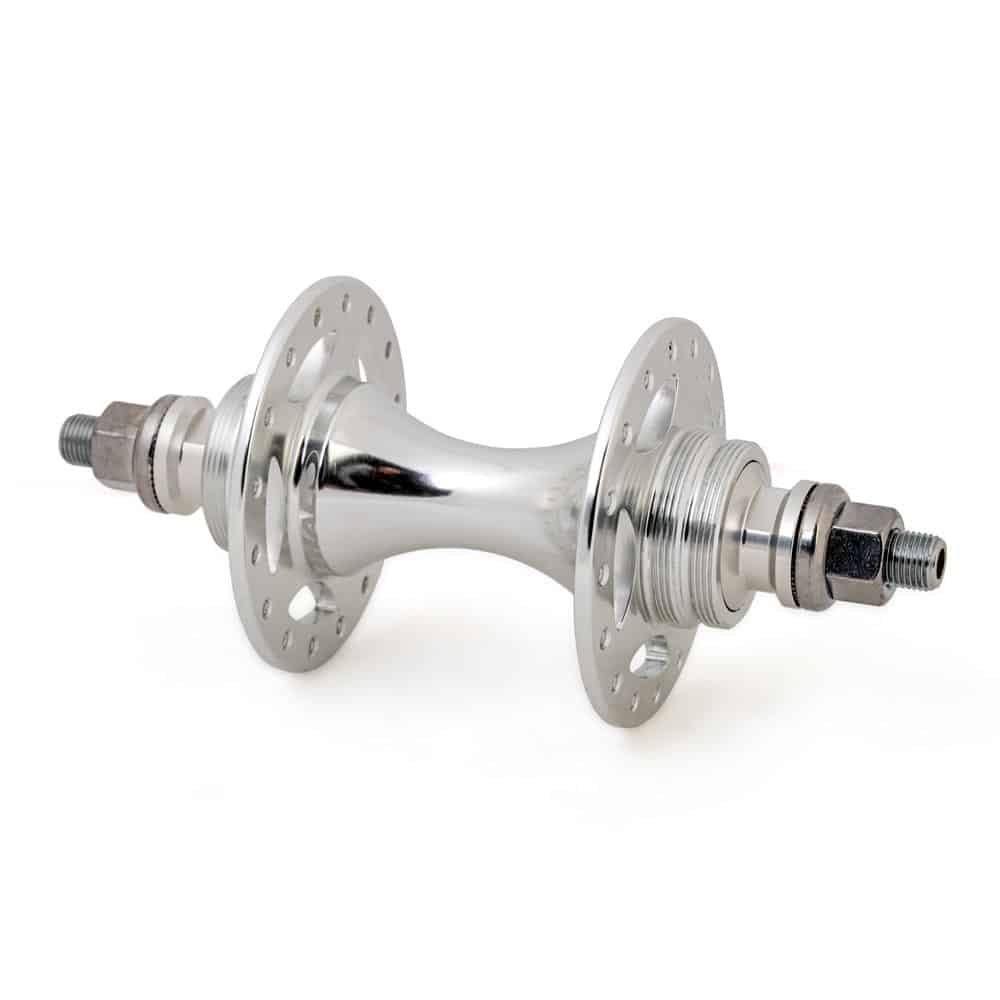

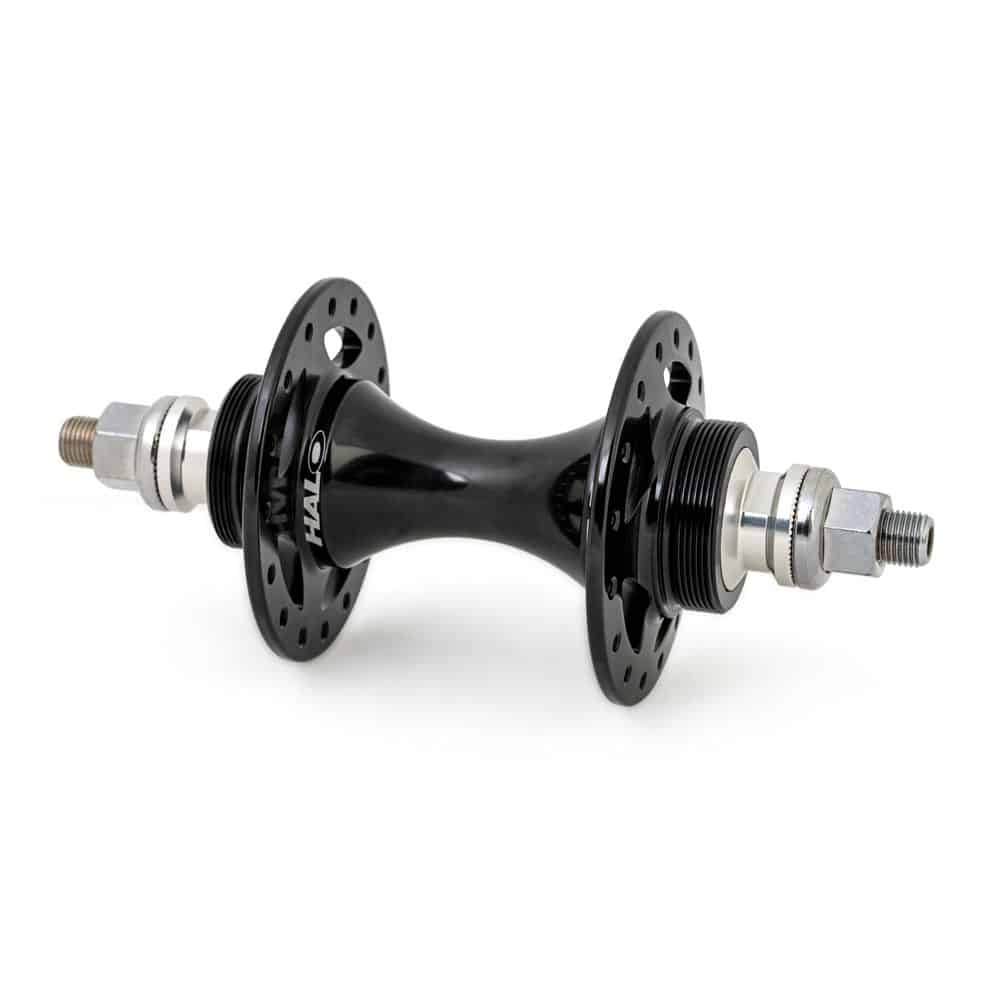

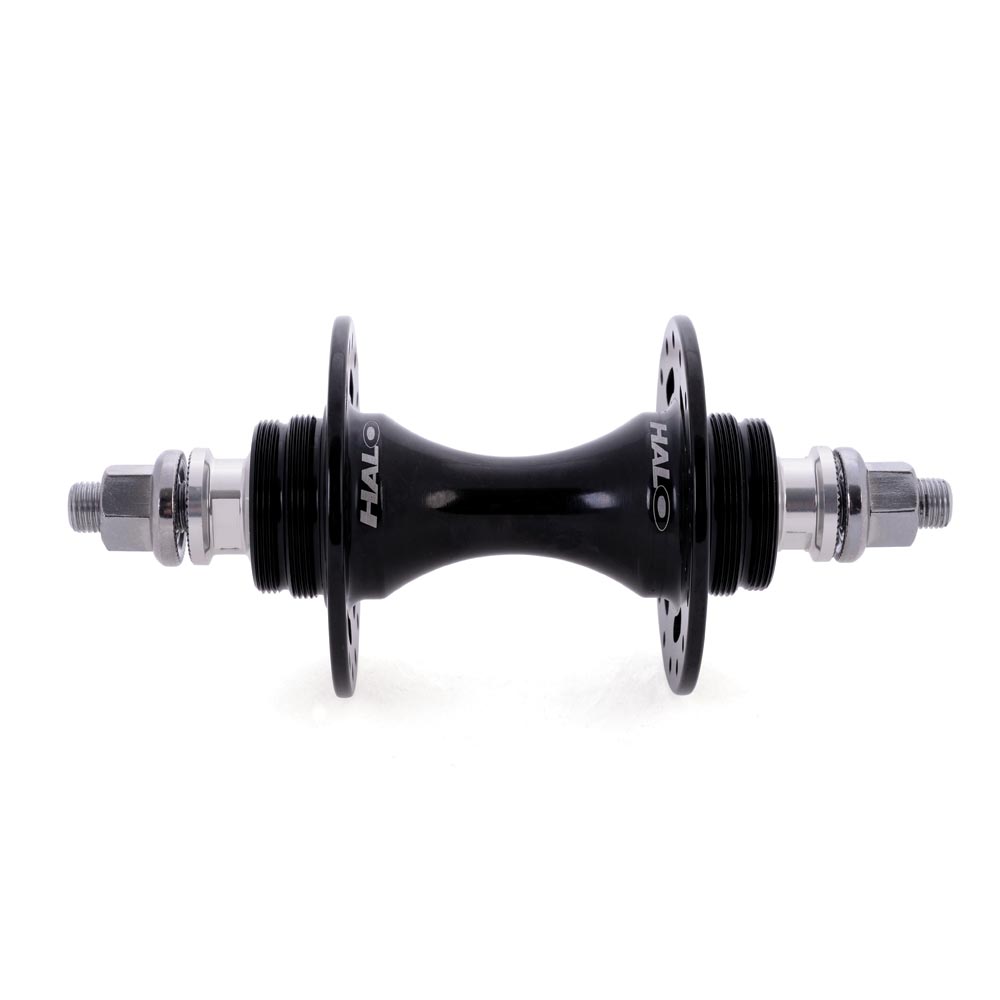

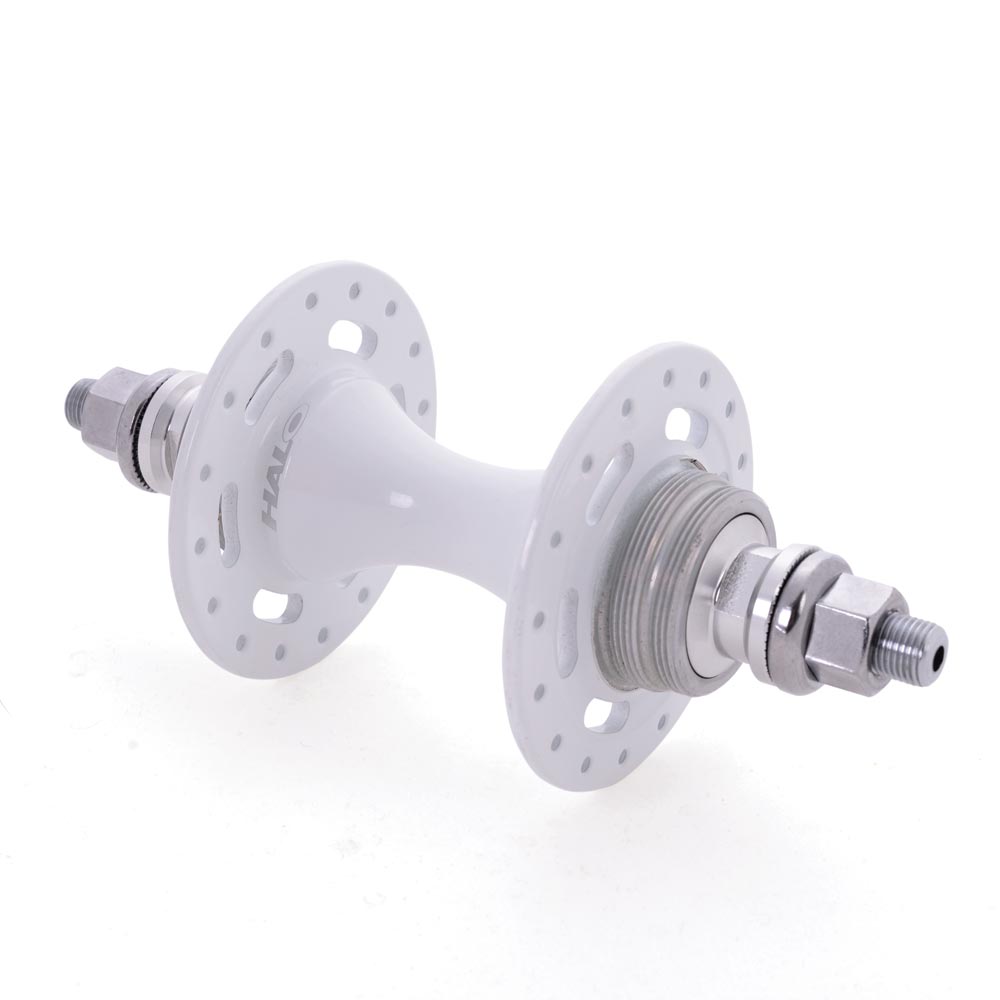

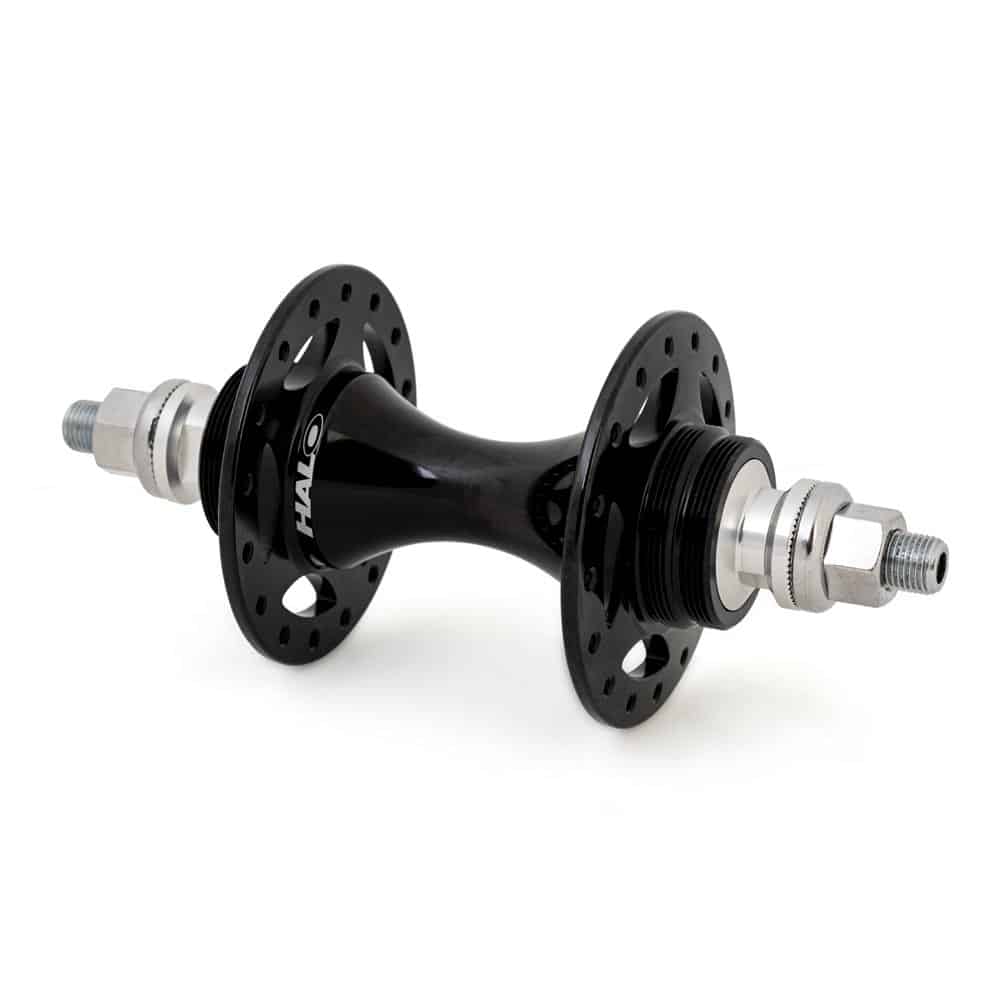

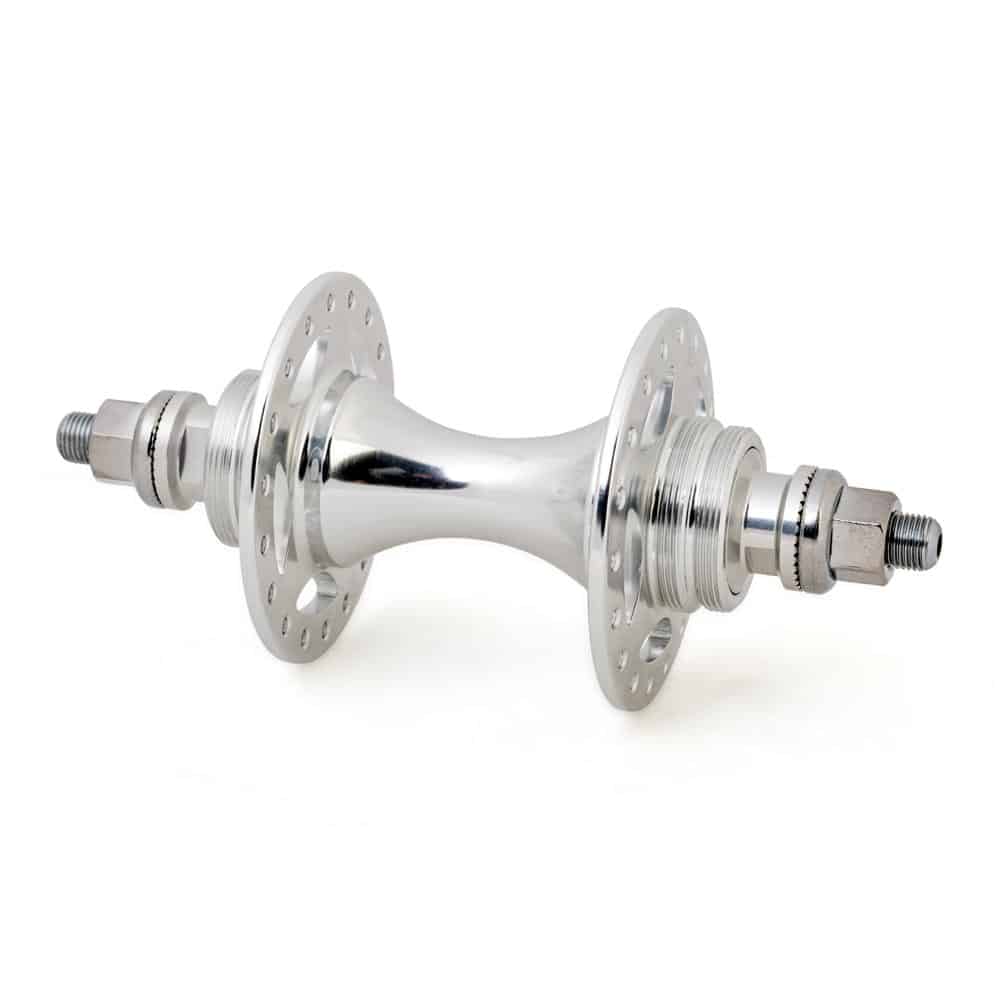

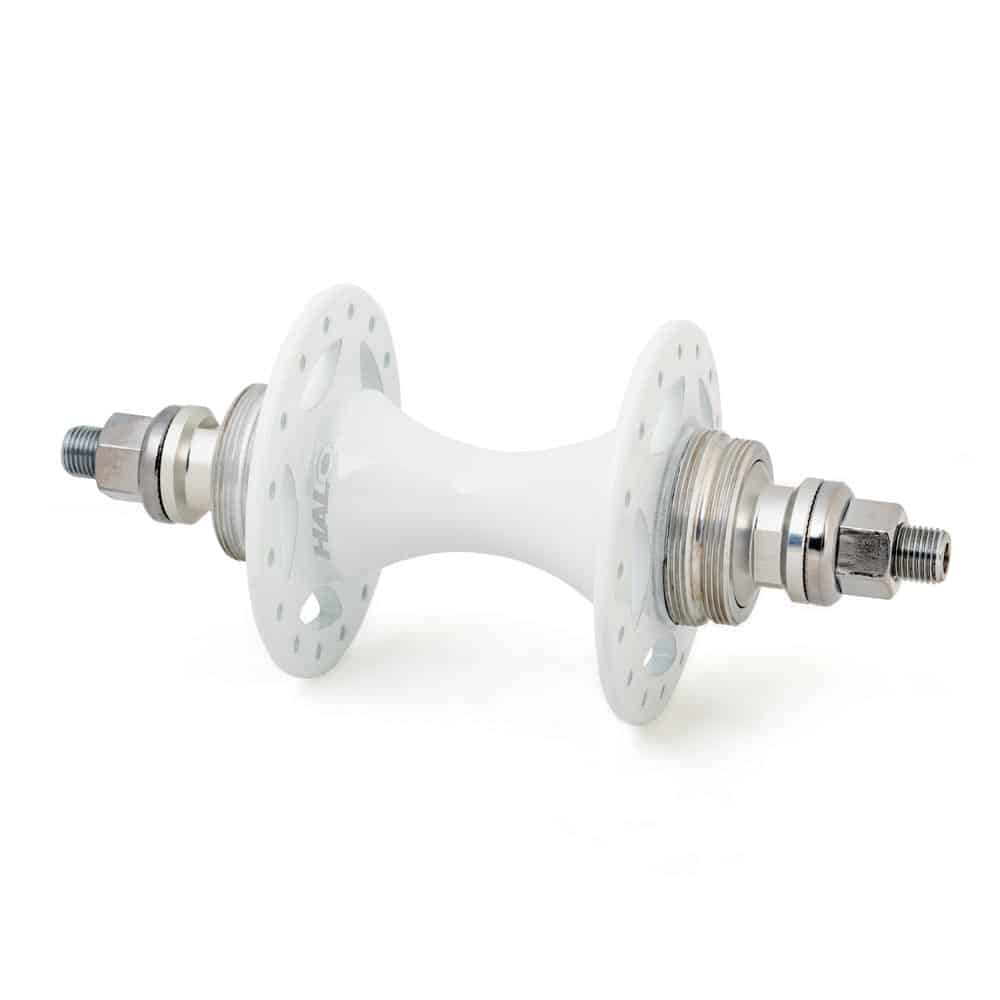

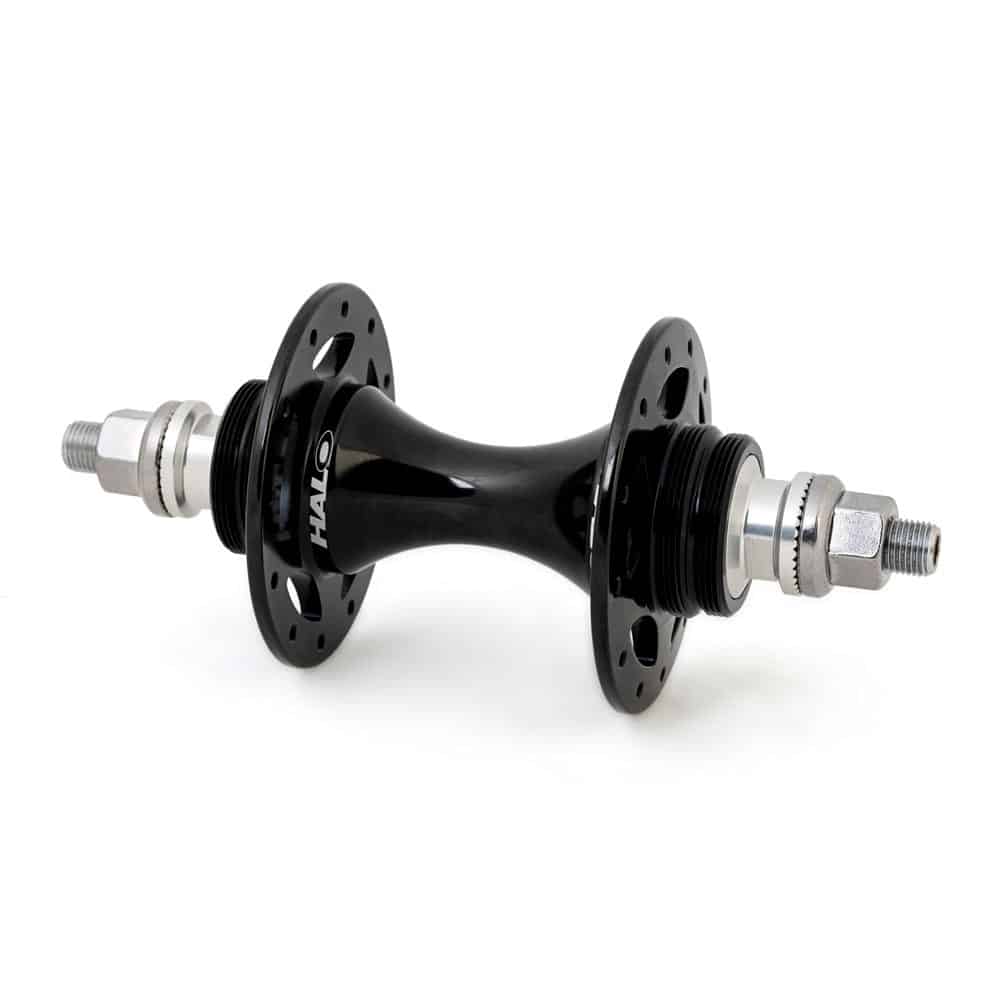

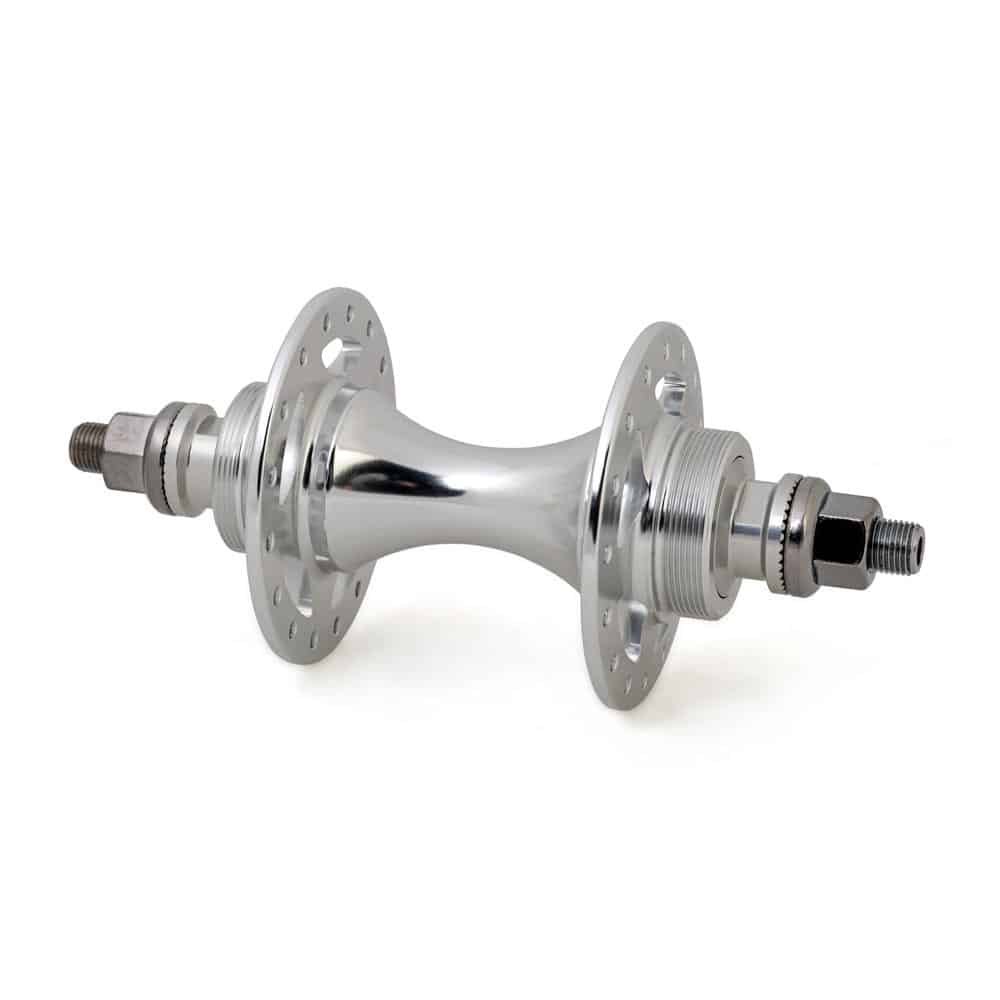

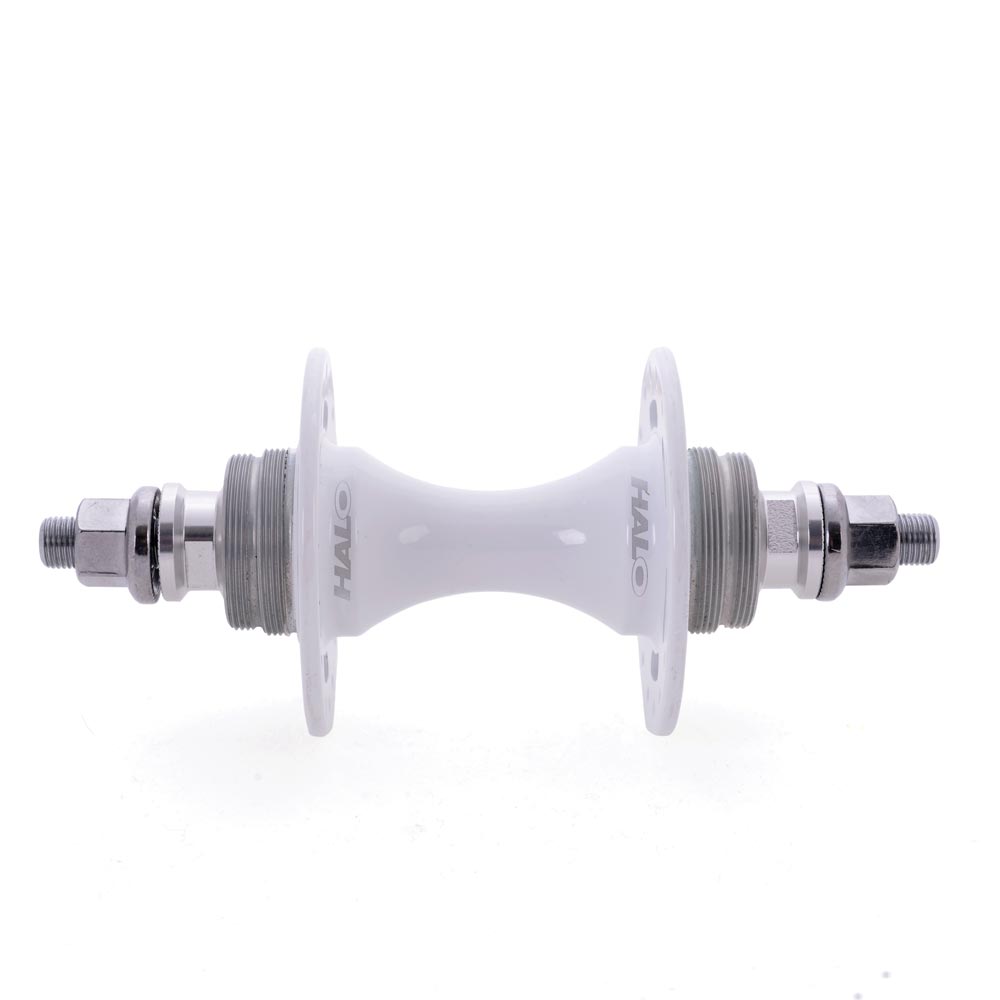

TK Rear Hub

Light weight track hubs.
£64.99

Renowned around the world by track racers, couriers and freestyle riders alike, our TK series hubs run on Japanese sealed bearings for longevity and speed.

At the core of our TK hubs are drilled Cr-mo steel axles to keep weight down and strength up.

The TK rear hub remains one of the finest track hubs on the market.

The double sided flip/flop TK Rear hub is available with fixed and free wheel options.

Use with our Halo Fixed Sprockets and Halo Fixed Sprocket Lockrings to achieve a chain line of 41mm.

Weights noted for track hubs include tracknuts at 32g.

IMPORTANT NOTE:
These hubs must only be used with ISO standard 1.29″ x 24tpi L/H fixed sprocket lockrings. Do not use French (1.32″ x 24tpi) or Italian (33 x 1mm) standard lockrings. The larger diameter French and Italian lockrings may appear to work but eventually will strip the threads from the ISO hub.

  • Spoke Hole Circle Diameter (PCD):
    62mm
  • Colour:
    Black, Silver or White
  • Axle:
    Hollow steel, threaded
  • OLD:
    120mm
  • Bearings:
    2 x 6000 Japanese sealed bearings
  • Centre to Flange:
    Left and Right: 31mm
  • Drillings:
    24H, 32H, 36H or 48H
  • spoke hole size (diameter):
    2.5mm
  • Material:
    Alloy forged and CNC machined
  • Weight:
    270-280g (includes tracknuts at 32g)
